Introducing the Smoove 1 RTS Wall Switch
OVERVIEW
The Smoove 1 RTS is a single channel wall switch to control nearby Radio Technology Somfy® (RTS) motorized window coverings. The switch is surface-mounted and battery-operated. Frames are available in multiple colors and finishes (sold separately).
FEATURES
• Battery-operated
• Surface-mounted
• Single channel control for one window covering or one group of window coverings

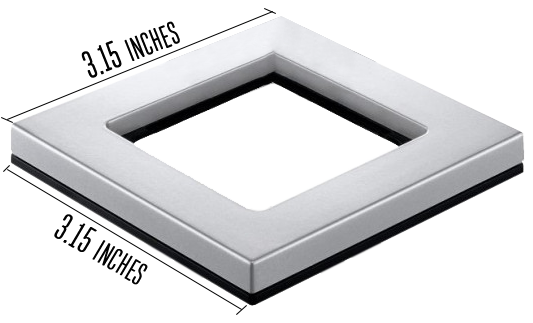

• 7 decorative frames available
• Tactile buttons for UP/DOWN/MY/STOP control
• LED for visual feedback
Clear Interaction:
• A discreet audible signal and light indicator
• Whenever you select a movement of action, Smoove emits an audible click and provides visual feedback
Touch Sensitive Technology:
• The feeling of touch
• Smooves touch-sensitive design follows the current popular trend for innovative touch-sensitive products
Neat & Tidy:
• A simple, elegant design, which even fits standard electrical boxes
• Installing the Smoove couldn’t be easier. As it is battery powered you can install directly onto the wall, but you can also fit it to a standard electrical box.
Natural Movement:
• With touch-sensitive technology, Smoove interacts fluidly, intuitively and naturally with the home environment
TECHNICAL SPECIFICATIONS
• Input: 3V; 290mAh
• Power Consumption: CR2430 battery
• Protection Rating: IP 30
• For interior use only
• Dimensions: 3.15” x 3.15” x .39” (with frame) & 1.97” x 1.97” x .39” (without frame)
• Maximum Range: Up to 65 feet (under optimum conditions)
• Operating Temperature Range: 32°F to 140°F (0°C / + 60°C )
• Frequency: 433.42 Mhz
• Shipping Weight: 1 lb.
• CE rated
• FCC certified
DIMENSIONS
